The Gruntwork Production Framework

In this guide, we are going to share our opinionated, step-by-step framework for successfully going to production on the public cloud. At Gruntwork, we've had the privilege to work with everything from tiny startups to massive Fortune 50 companies to some of the world's largest government agencies, and this document captures the common patterns we've seen that actually worked.

Gruntwork Production FrameworkGruntwork Production Framework

This is not another high-level, vague "cloud operating model" document that is heavy on buzzwords but light on actionable content. Instead, you'll find a clear mental model of how to think about cloud usage, plus a set of concrete, opinionated set of steps you can follow to make better use of the cloud at your company. Think of this as a concrete description of the cloud setup you should be aiming for—the "right way" to do things.

Video overview

If you prefer a video over reading a talk, check out this talk from Gruntwork Co-Founder Yevgeniy Brikman which introduces each ingredient of the Gruntwork Production Framework, as well as how to put them all together:

Why you need a framework

The cloud changes everything.

In the past, if you wanted to build a software company, you'd also have to manage a lot of hardware, including setting up a data center with lots of servers, racks, wiring, cooling, and so on. As a result, most companies were split between the folks that wrote the software ("Devs") and the folks that managed the hardware ("Ops"). Nowadays, instead of managing data centers, the vast majority of companies are moving to the cloud, and running their software on Amazon Web Services (AWS), Azure, and Google Cloud Platform (GCP).

This has a huge impact on how a software company works. Instead of racking hardware, your Ops team now spends most of its time working with software tools such as Terraform, Packer, Docker, and Kubernetes. And instead of your Dev team writing code and "tossing it over the wall" to Ops, Devs want to be self-sufficient, deploying and managing everything they need themselves without being bottlenecked by Ops team.

In other words, the distinction between Dev and Ops teams is blurring: this is where the term DevOps comes from. There's no widely agreed-upon definition for DevOps, but for the purposes of this article, we'll think of it as a movement which has the goal of making software delivery vastly more efficient. And the one thing you can be certain of is that trying to port the "old way" of doing things to the cloud will not be efficient. The shift to the cloud and DevOps brings a huge number of changes:

BeforeAfter
TeamsDevs write code, "toss it over the wall" to OpsDevs & Ops work together on cross-functional teams
ServersDedicated physical serversElastic virtual servers
ConnectivityStatic IPsDynamic IPs, service discovery
SecurityPhysical, strong perimeter, high trust interiorVirtual, end-to-end, zero trust
Infrastructure provisioningManualInfrastructure as Code (IaC) tools
Server configurationManualConfiguration management tools
TestingManualAutomated testing
DeploymentsManualAutomated
Deployment cadenceWeeks or monthsMany times per day
Change processChange request ticketsSelf-service
Change cadenceWeeks or monthsMinutes

Who the framework is for

This framework is for companies who wish to adopt the public cloud (e.g., Amazon Web Services, Microsoft Azure, Google Cloud Platform) for production and mission-critical use cases. We're talking about use cases where you're betting your company on the reliability and security of the cloud: you're betting that your infrastructure won't fall over if there's a traffic spike; you're betting that you won't lose data if there's an outage; you're betting that hackers won't be able to break in and compromise your data; and if these bets don’t work out, your company may go out of business. That’s what’s at stake here.

Prerequisites

There are a couple prerequisites to using the framework:

  1. Define your requirements in writing
  2. Implement your requirements in code

Define your requirements in writing

Here's a fun experiment to try at your company: go around to 5 different teams, and ask them, "what do I have to do to put a new app in prod?" In most companies, you'll get 5 (or sometimes even 6!) completely different answers. One team might talk about packaging your app using Docker; another may talk about configuring monitoring, logging, and alerting; another team will focus on what compliance and regulatory requirements you must meet; yet another team will dive into the details of your scalability and high availability requirements.

As Yogi Berra said, if you don't know where you are going, you'll end up someplace else. Something similar is true of the cloud: if you don't know exactly what your cloud requirements are, you won't meet them. Trying to backfill security, compliance, monitoring, availability, and other requirements after your team has been running wild in the cloud for months is much harder.

Therefore, it's essential to get your requirements down in writing, ideally in the form of a checklist (see also: The Checklist Manifesto). This will give you a real sense of the work involved: seeing a long list of requirements, in front of you, on (digital) paper, makes the scope of the work much more visible, which is particularly useful in the face of bosses who blindly demand "we must be 100% in the cloud by <unrealistic timeline>!!!" with zero context on just how much work is involved. You can use the list of requirements to coordinate the work and track progress towards. You can use this list not only for an initial launch, but for all new deployments in the future too. You can of course include diagrams and images too. And when you put it all together, you'll finally have a single, canonical, written answer to "what do I have to do to put a new app in prod?"

There are many types of requirements to take into consideration:

RequirementExamples
InfrastructureServers, databases, load balancers, etc.
ComplianceSOC 2, ISO 27001, HIPAA, PCI, CIS, etc.
ObservabilityMetrics, logging, alerting, audit trails, etc.
GovernanceOperations, access control, data mgmt, etc.
SecurityEncryption, secrets management, auth, etc.
ScalabilityLoad, throughput, response time, etc.
Availability & resiliencySLAs, backup, replication, etc.
CostBudget, cost tracking, cost optimization, etc.

This list is just a starting point; depending on your company's needs, there may be other requirements to take into account. The good news is that once you start getting these down systematically, in writing, you'll realize what else you need to think through as well.

Implement your requirements in code

In the past, doing this requirements analysis, capturing it in writing in checklists and policy documents, and training your org to enforce these requirements might have been enough. But in the era of elastic, self-service, instantly-available cloud environments, it's not enough to have a bunch of written documents and manual processes. You can no longer rely on manual deployments, manual security checks, or manual responses to outages. You must go one step further and capture and enforce requirements as code.

Let's extend the table of requirements from the previous section with examples of how you can implement each one using different types of code:

RequirementExamplesCode examples
InfrastructureServers, databases, load balancers, etc.Infrastructure as Code (IaC) tools: Terraform, CloudFormation.
ComplianceSOC 2, ISO 27001, HIPAA, PCI, CIS, etc.Continuous testing tools: Terratest, Open Policy Agent (OPA).
ObservabilityMetrics, logging, alerting, audit trails, etc.Monitoring tools: CloudWatch, DataDog, Prometheus.
GovernanceOperations, access control, data mgmt, etc.CI / CD tools: Jenkins, GitLab, GitHub Actions.
SecurityEncryption, secrets management, auth, etc.Server & network hardening tools: Packer, Istio.
ScalabilityLoad, throughput, response time, etc.Auto scaling tools: e.g., Kubernetes, Fargate.
Availability & resiliencySLAs, backup, replication, etc.Replication & backup tools: AWS Backup, S3 replication.
CostBudget, cost tracking, cost optimization, etc.Cost management enforcement tools: Terraform, OPA.

The list above is just an example of some of the tools you use. There are plenty of other options available, and it's less important which tool you pick, so long as that tool lets you manage everything as code.

Why code? We've found that companies that successfully use the cloud almost always capture and enforce their requirements not only in software (rather than manual processes), but specifically as software managed with code. Software managed manually with a web UI—e.g., setting up infrastructure by manually clicking around the AWS Web Console ("ClickOps"*)—*is not enough, as there are a number of benefits that you only get when you manage your requirements with code:

  1. Customization. Every company's requirements are a bit different. With a web UI, it's all or nothing: either the web UI lets you customize things as you need them, or it doesn't. With code, you can typically configure things exactly as you need it. Well-designed code is flexible, modular, and expressive.
  2. Speed, safety, consistency. Computers are exceptionally good at doing the same thing, again and again, exactly the same way, at extreme speeds. Humans are not. Compared to doing anything manually, capturing your requirements as code means you'll be able to meet and enforce those requirements in a way that is far faster, more consistent, and less error prone.
  3. Documentation. Instead of the state of your infrastructure being locked away in a single sysadmin’s head, you can represent the state of your infrastructure in source files that anyone can read. In other words, code acts as documentation, allowing everyone in the organization to understand how things work, even if the sysadmin goes on vacation. You can even generate diagrams from your code (e.g., using CloudCraft), dependency graphs, and do various other types of analysis to better understand how your infrastructure is configure
  4. Versioning. You can store your your code in version control, which means that the entire history of changes is now captured in the commit log. This becomes a powerful tool for debugging issues, because any time a problem pops up, your first step will be to check the commit log and find out what changed, and your second step might be to resolve the problem by simply reverting back to a previous, known-good version of your code.
  5. Validation. If you manage everything as code code, then for every single change, you can perform a code review, run a suite of automated tests, and pass the code through static analysis tools—all practices that are known to significantly reduce the chance of defects.
  6. Reuse. Instead of doing everything manually, from scratch, every time, code allows you to build on top of known, documented, battle-tested pieces. For example, once your team has figured out how you want to set up your networking (e.g., VPCs, subnets, route tables, NAT gateways, etc), you can capture that as code, and reuse it in all your future projects, rather than figuring it out from scratch every time.
  7. Happiness. There is one other very important, and often overlooked, reason for why you should use code: happiness. Human beings don't like doing manual, repetitive processes. There's no room for creativity, no challenge, and no recognition. You could deploy code manually for months without issues, and no one will take notice—until that one day when you mess it up. That creates a stressful and unpleasant environment. Code offers a better alternative that allows computers to do what they do best (automation) and people to do what they do best (creativity).

So, as you go through this framework, keep in mind that the goal is to define and manage each part of the framework in code.

Let's get started

So how do you accomplish all of this? How do you allow your Dev teams to be highly productive and self-sufficient, while still allowing your Ops team to control what's happening under the hood and ensure all your business, security, and legal requirements are met?

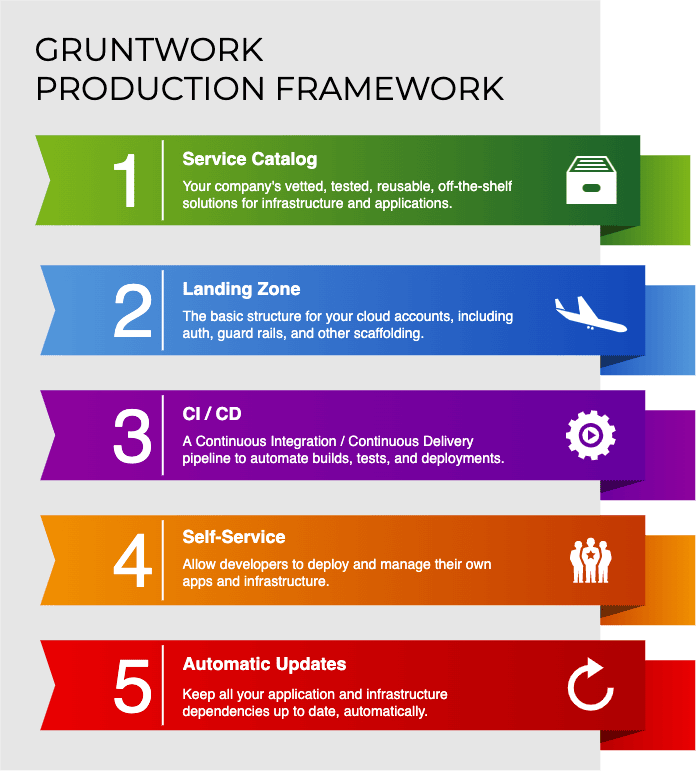

The goal of the Gruntwork Production Framework is to help you answer these questions. First, we'll define the basic ingredients: the raw primitives your company will need to put in place to use the cloud successfully. Then, we'll take a look at some recipes: a walkthrough of one way you could put all those ingredients together into an end-to-end experience for your Dev and Ops teams. Finally, we'll talk about the off-the-shelf solutions we have available at Gruntwork to help you implement this framework.

  1. Ingredients
    1. Service Catalog
    2. Landing Zone
    3. CI / CD Pipeline
    4. Self-Service
    5. Automatic Updates
    6. Other Ingredients
  2. Recipes
    1. Intro
    2. The Dev team experience
    3. The Ops team experience
  3. Solutions
    1. How Gruntwork can help
